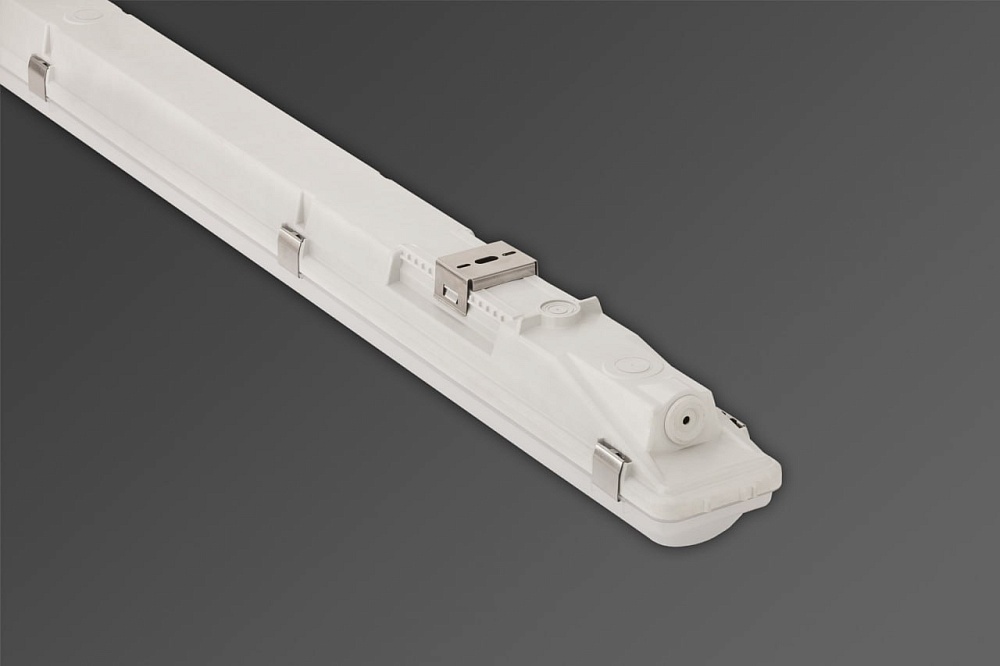

DCW097 12-24 VDC

PRODUCT INFORMATION

TYPE

• Product type:
  DCW 097

FUNCTIONALITY

• Driver:
  Driver MeanWell included
• Initial LED luminaire efficacy:
  115 Lm/W
• Optical cover:
  Injection molded acrylic (PMMA). As option injection molded polycarbonate (PC)
• Light Color:
  4000 K as a standard
• Color Rendering Index (CRI):
  > 80
• Light Output Range, Lm:
  1500, 3000 lm depending on type
• Optical types:
  Wide. 120 dgr light distribution
• Power supply:
  Driver MeanWell
• Light source:
  LED module with OSRAM led chips

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0,92
• Electrical isolation class IEC:
  Class II
• Input Frequency:
  n/a
• Power factor nominal:
  n/a
• Input voltage:
  12/24 VDC
• Power consumption:
  13,26 W depending on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP66
• Impact resistance:
  IK05, IK10 as option
• Installation:
  on surface
• Body material:
  Flame retardant glass-fibre reinforced polyester
• Net weight piece:
  1,3 kg

OVERTIME PERFORMANCE

• Driver service life time @10% failures:
  50 000 h
• Initial system efficacy:
  115 Lm/W
• Luminous flux system tolerance:
  +/- 7%
• Median useful life of LED source:
  L80B20, 50 000 Hours
• Power consumption tolerance:
  +/- 7%

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -20+35 C
• Average ambient temperature:
  n/a

GENERAL INFORMATION

• Flammability:
  Not fire resistant
• CE mark:
  CE mark
• ROHS mark:
  ROHS mark
• Application:
  • Parking garages
  • Warehouses
  • General lighting
