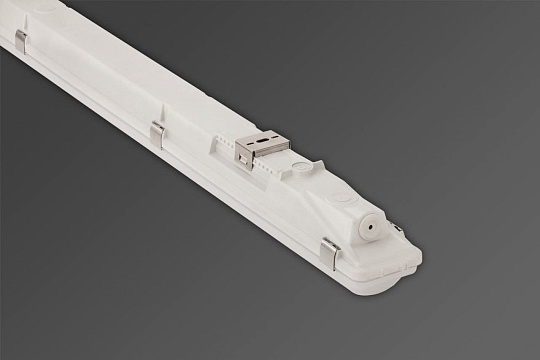

DCW097 230VAC/220VDC

PRODUCT INFORMATION

FUNCTIONALITY

• Initial LED luminaire lm output 2500-11500Lm Depends on type
• Optical cover:
  Injection molded acrylic (PMMA). As option injection molded polycarbonate (PC)
• Color Rendering Index (CRI):
  > 80
• Power supply:
  Philips xitanium driver
• Light source:
  LED module with Samsung led chips

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0.91
• Electrical isolation class IEC:
  Class I as a standard, Class II on request
• Input Frequency:
  50-60 Hz
• Power factor nominal:
  0,95
• Input voltage AC range:
  198-264V
• Input voltage DC range 168-275V
• Power consumption:
  16-74 W Depends on type

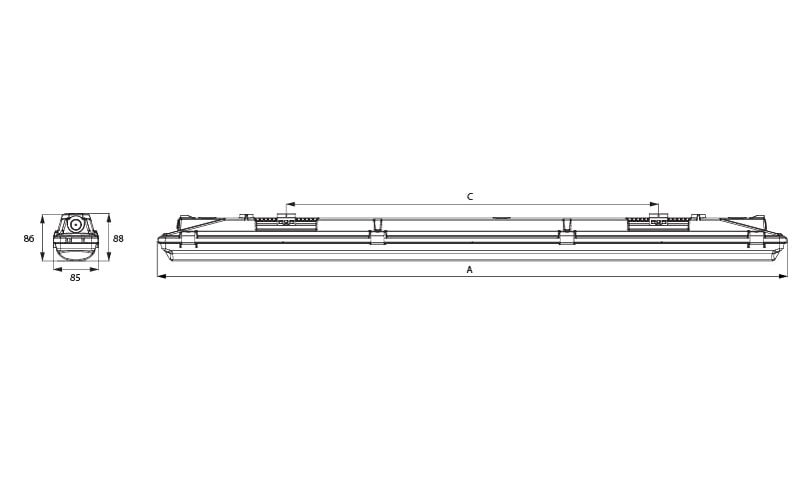

MECHANICAL PARAMETERS

• Ingress protection:
  IP66
• Impact resistance:
  IK05, IK08 as option
• Installation:
  on surface
• Body material:
  Flame retardant glass-fibre reinforced polyester

OVERTIME PERFORMANCE

• Driver service life time @10% failures:
  100 000 h@ 65 grad C Tc point
• Initial system efficacy:
  Up to 170 lm/W
• Luminous flux system tolerance:
  +/- 5%
• Median useful life of LED source:
  L80B20, 50 000 Hours
• Power consumption tolerance:
  +/- 5%

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -20+35 C

GENERAL INFORMATION

• Flammability:
  Not fire resistant
• CE mark:
  CE mark
• ROHS mark:
  ROHS mark
• Application:
  Electro Power substations With 330VDC current sourses Emergency lighting for central batteries 220VDC output
