DIRECT CURRENT LUMINAIRES

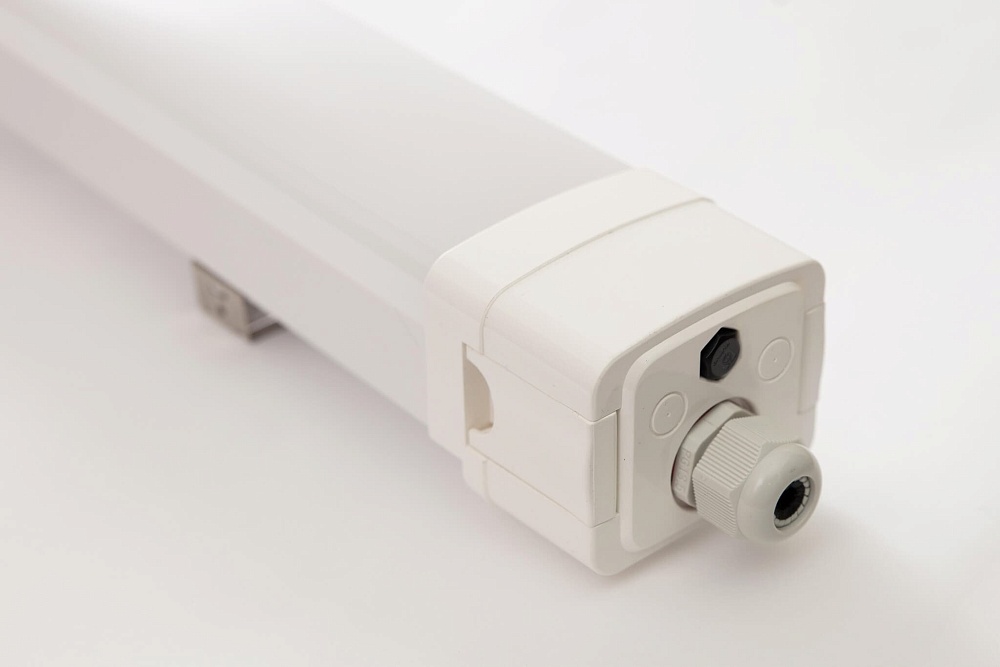

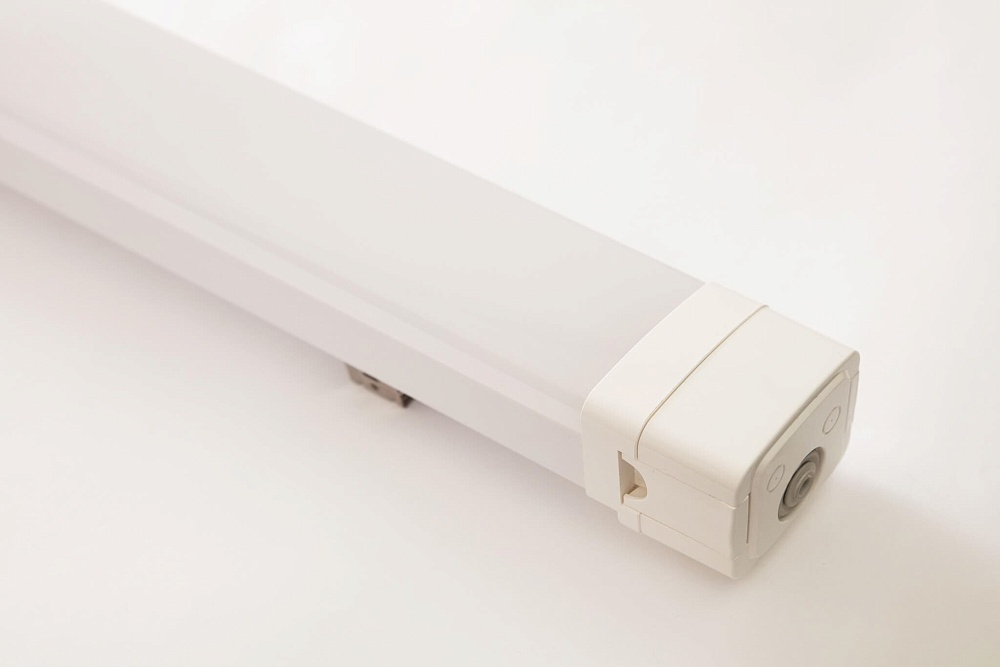

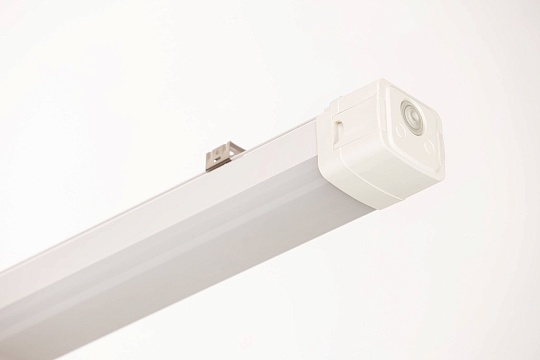

DCW117 12-24VDC

DCW117 12-24VDC

Benefits:

An excellent light uniformity through well-balanced light dispersing (no shadows)
Reliable LED technology – maintenance-free
Direct replacement for conventional waterproof luminaires in terms of light performance, installation flexibility and length
Quick installation
Attractive design.
Possible to use with 12-24V constant current power suppliers systems.

Downloads:

Datasheet PDF

PRODUCT INFORMATION

TYPE

Product type:

DCW 117 Xtrude Slim LV

FUNCTIONALITY

Driver:

Driver MeanWell
Initial LED luminaire efficacy:

140Lm/W
Optical cover:

Polycarbonate (PC) by co-extrusion
Light Color:

4000 K as a standard, 3000K on request
Color Rendering Index (CRI):

> 80
Light Output Range, Lm:

1900-3700 lm depending on type
Optical types:

Wide. 120 dgr light distribution
Power supply:

Driver MeanWell included
Light source:

LED module, OSRAM Led chips

ELECTRICAL PARAMETERS

Driver efficiency nominal:

0,87-0,92 depends on type
Electrical isolation class IEC:

Class II
Input Frequency:

DC
Power factor nominal:

n/a
Input voltage:

12-24 V
Power consumption:

13 or 26 W depending on type

MECHANICAL PARAMETERS

Ingress protection:

IP65
Impact resistance:

IK08
Installation:

On surface
Body material:

Polycarbonate (PC) by co-extrusion

OVERTIME PERFORMANCE

Driver service life time @10% failures:

50000-100 000 hours depends on type
Initial system efficacy:

140Lm/W
Luminous flux system tolerance:

+/- 5%
Median useful life of LED source:

L80B20, 100 000 Hours
Power consumption tolerance:

+/- 5%

ENVIROMENTAL CONDITIONS

Ambient temperature range:

-20+35 C

GENERAL INFORMATION

Flammability:

Not fire resistant
CE mark:

CE mark
ROHS mark:

ROHS mark
Application:
- Parking garages
- Warehouses
- General lighting

NUMBER OF LUMINARIES/MCB

Table:
