DRIVERS AND POWER SUPPLIERS

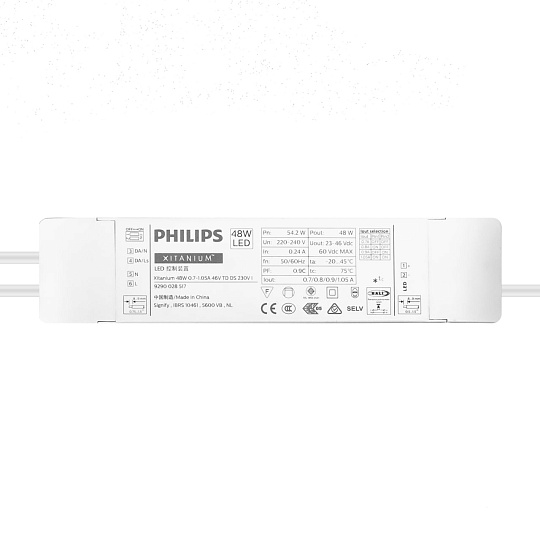

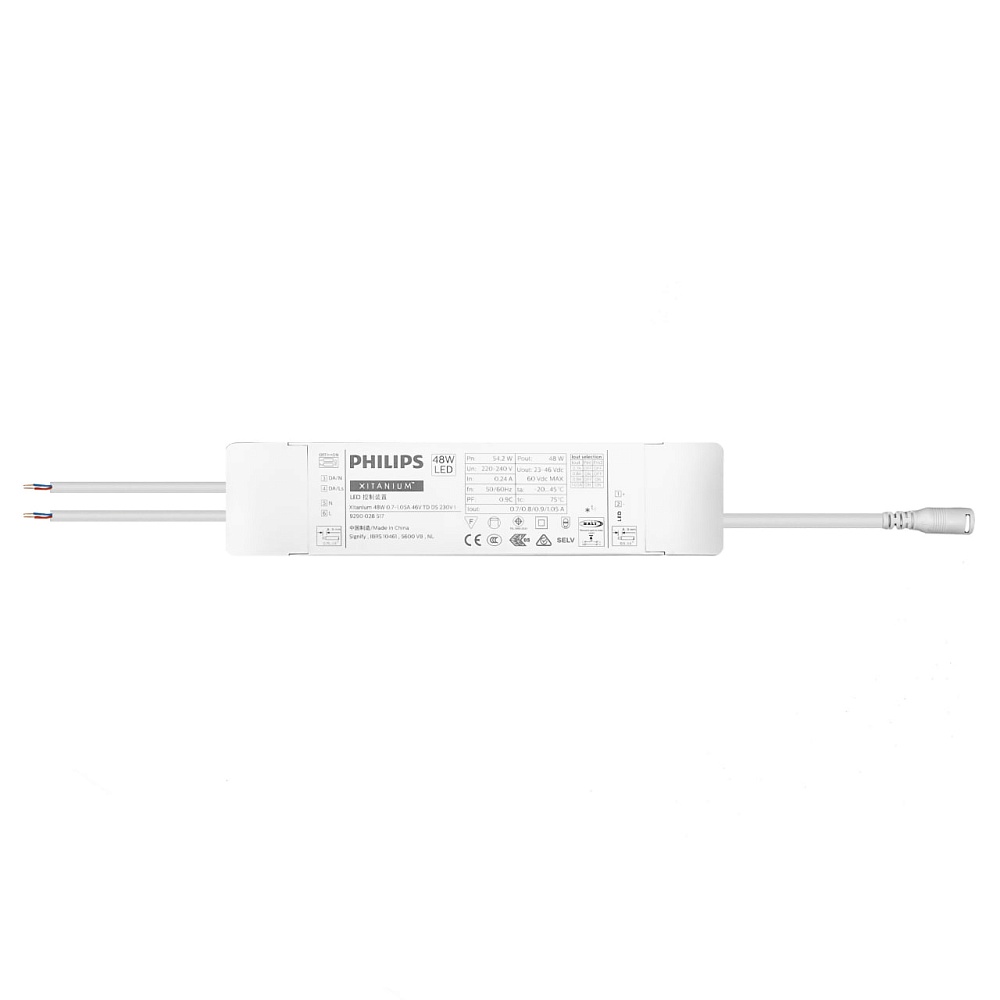

Xitanium 48W 0.7-1.05A 46V TD DS 230V I
Benefits and downloads
Benefits:
High quality of light -assurance of camera and scanner-friendly performance
High reliability
Optimized performance at specic output current settings
Flicker and noise free dimming with all Touch and DALI LED drivers due to amplitude dimming (AM)
Low output current tolerance
Low output ripple current Long lifetime at high operating temperature
Easy current selection via dipswitch
Dali dimmable & programmable
1-10V dimmable, and xed-output versions available
Downloads:
Datasheet PDF
PRODUCT INFORMATION
TECHNICAL DATA
Rated input voltage
220-240 V
Rated input frequency range
50-60 Hz
Power factor
0.9
Efficiency
89
Isolation input to output
SELV
Output voltage
23-46 V
Output current
0.7/0.8/0.9/1.05 A
Output current tolerance
5 %
Output current ripple LF
<4 %
Output power
16.1-48.3 W
ORDERING INFORMATION
Article number
9290 028 51780
Packaging, ctn
24
Weight per pcs
175 gramm
