EMD400 1H 230VAC/24VDC

PRODUCT INFORMATION

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  up to 0.92
• Electrical isolation class IEC:
  Safety class II as a standard
• Mains voltage index:
  AC 230 – 240 V / 50 – 60 Hz DC 24V for use with central battery only
• Power factor nominal:
  up to 0.98
• Power range:
  4 W as a standard
• Autonomy:
  1 hour
• Battery charging:
  24 hours

LIGHTING PERFORMANCE

• Visibility:
  40m
• Light source:
  LED module
• Type of optic:
  4 mm PMMA diffuser. Pictograms for emergency escape included (the 3 pairs of pictograms are supplied in the packaging). Informational pictograms on request

CONSTRUCTION AND MATERIALS

• Housing colour:
  White RAL9010 as standard.
• Housing material:
  Housing: PC
• Battery:
  LiFePO4 3,2V 1,5A
• Impact resistance:
  IK04
• Ingress protection:
  IP40
• Optical cover:
  PMMA

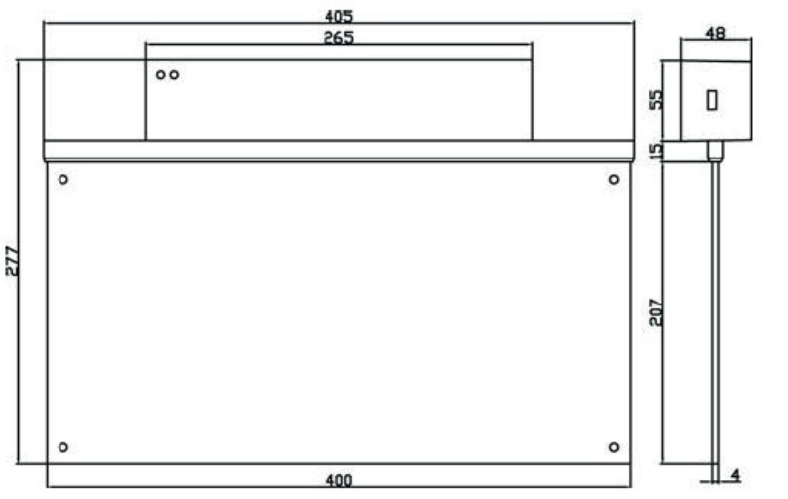

• Dimensions:




• Installation:
  Wall surface (side or front). Directly on the ceiling Mounting hardware included.
• Maintenance:
  With inside battery version non maintained. Self-test and test button. For central battery connection open with screws
• Maintenance of lumen output:
  50000 hours – L90B10
• Operating temperature range:
  -20…+40 C, typical for exact values
• Application:




  • Offices
  • Schools
  • Warehouses
  • Public spaces
  • Retail
  • Hotels and residences
  • Industrial interprises

MARKING AND APPROVALS

• CE mark:
  CE marked
• ROHS mark:
  ROHS complaint
