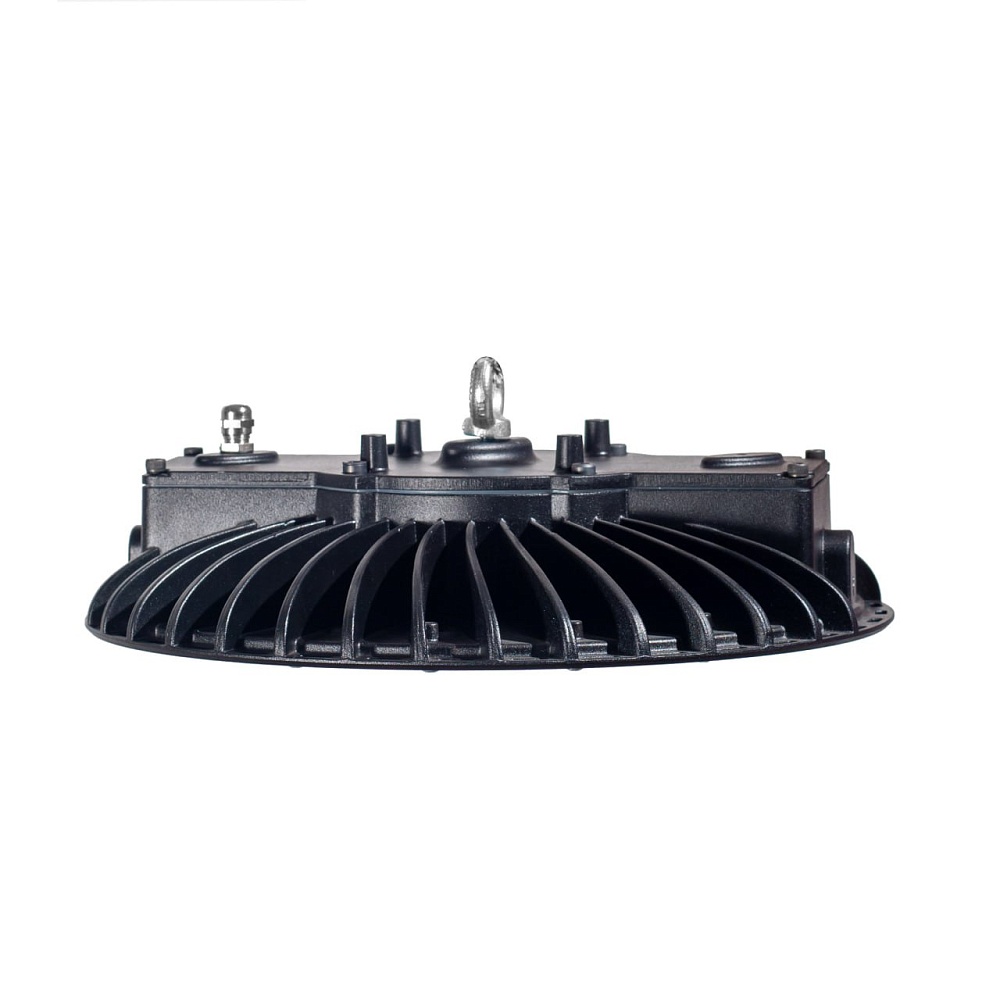

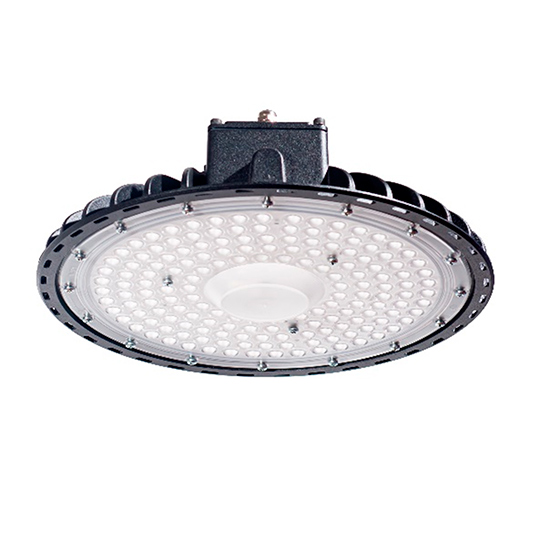

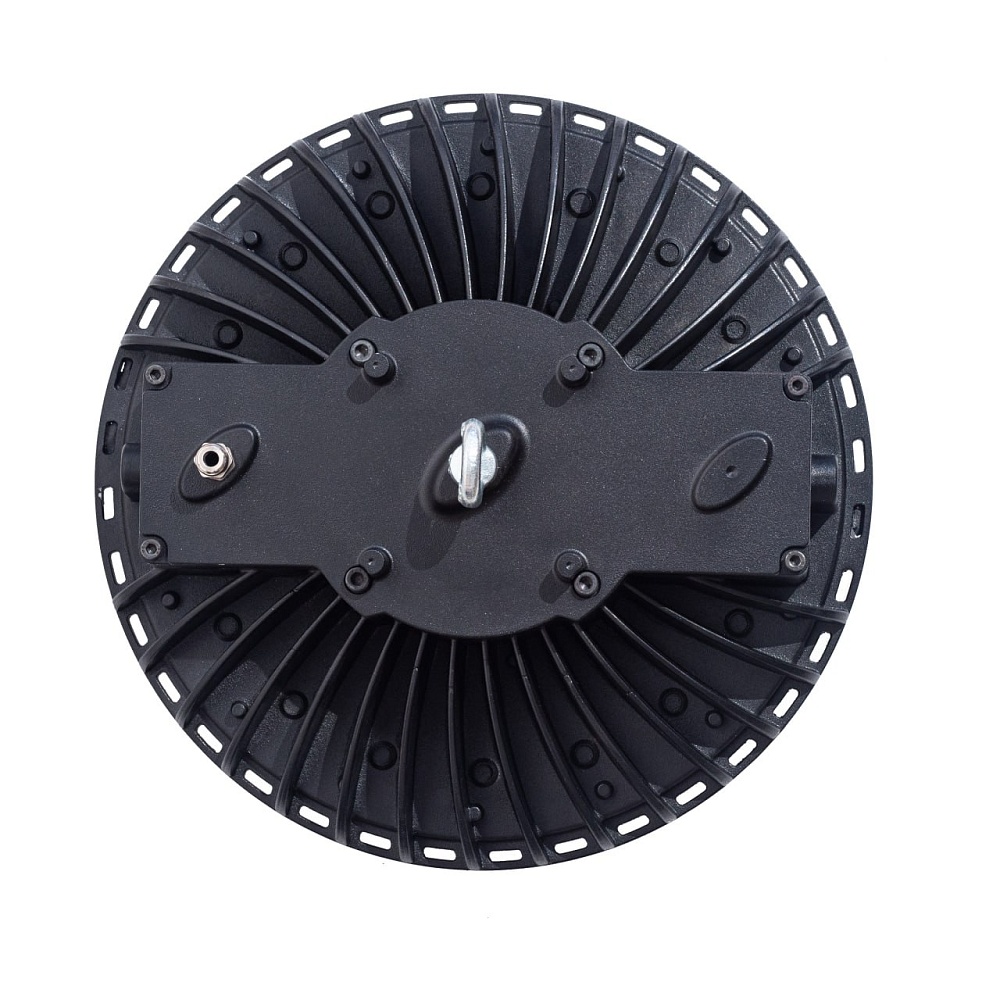

DCF 322 HE Highbay Mini

PRODUCT INFORMATION

FUNCTIONALITY

• Diffuser:
  • PMMA LEDIL Lens as standard
  • PC LEDIL Lens on request
• Color Rendering Index (CRI):
  > 80
• Power supply:
  Driver Philips Xitanium
• Control method:
  • 1-10V (dimming range 10-100%)
  • DALI (dimming range 10-100%)
  • Codes mains
  • ApmDim
  • LineSwitch 3 step or single step
• Light source:
  MST LED module

ELECTRICAL PARAMETERS

• Electrical isolation class IEC:
  • Class I as standard
  • Class II on request
• Power factor nominal:
  0,95
• Input voltage:
  220 – 240 V
• Power consumption:
  64-106 W depending on type
• Luminaires/MCB 16A Type B:
  ≤ 10
• Output current ripple:
  • LF ≤ 4
  • HF ≤ 4

MECHANICAL PARAMETERS

• Ingress protection:
  IP66
• Gasket material:
  Silicone
• Impact resistance:
  • IK07 as standard
  • IK10 on request
• Body material:
  Housing: high-pressure, die-cast aluminum
• Color:
  Black

OVERTIME PERFORMANCE

• Initial system efficacy:
  142-156 Lm/W
• Initial light output:
  10000-15000 Lm
• Median useful life of LED source:
  L80B20, 100 000 Hours

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -40 to +55 °C

ACCSESORIES

• EOC	Description
  30112003	Hanging loop
  30112004	Rope for suspension

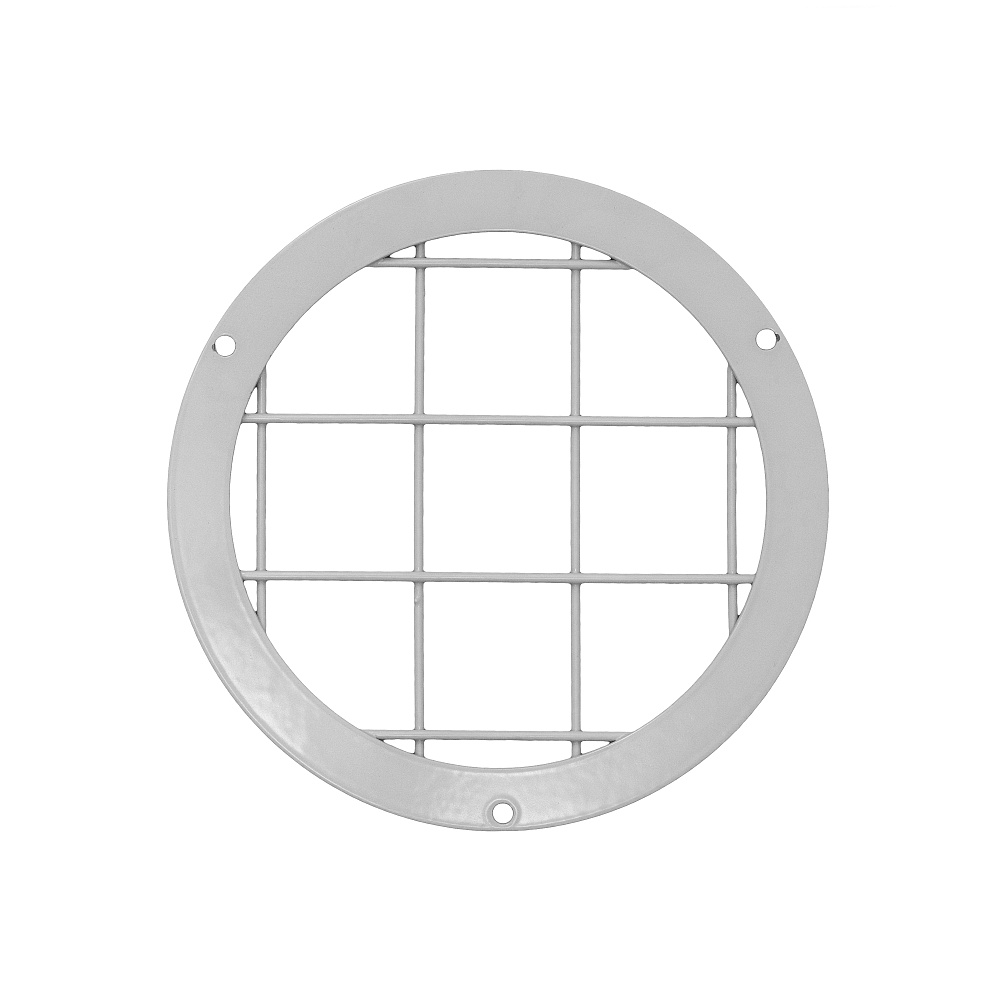

  30112007	Protective grid 322

GENERAL INFORMATION

• CE mark:
  CE marked
• ROHS:
  ROHS compliant
• Application:
  • Industrial halls
  • Warehouses
  • Exhibition halls
  • Food production area
  • Supermarkets
