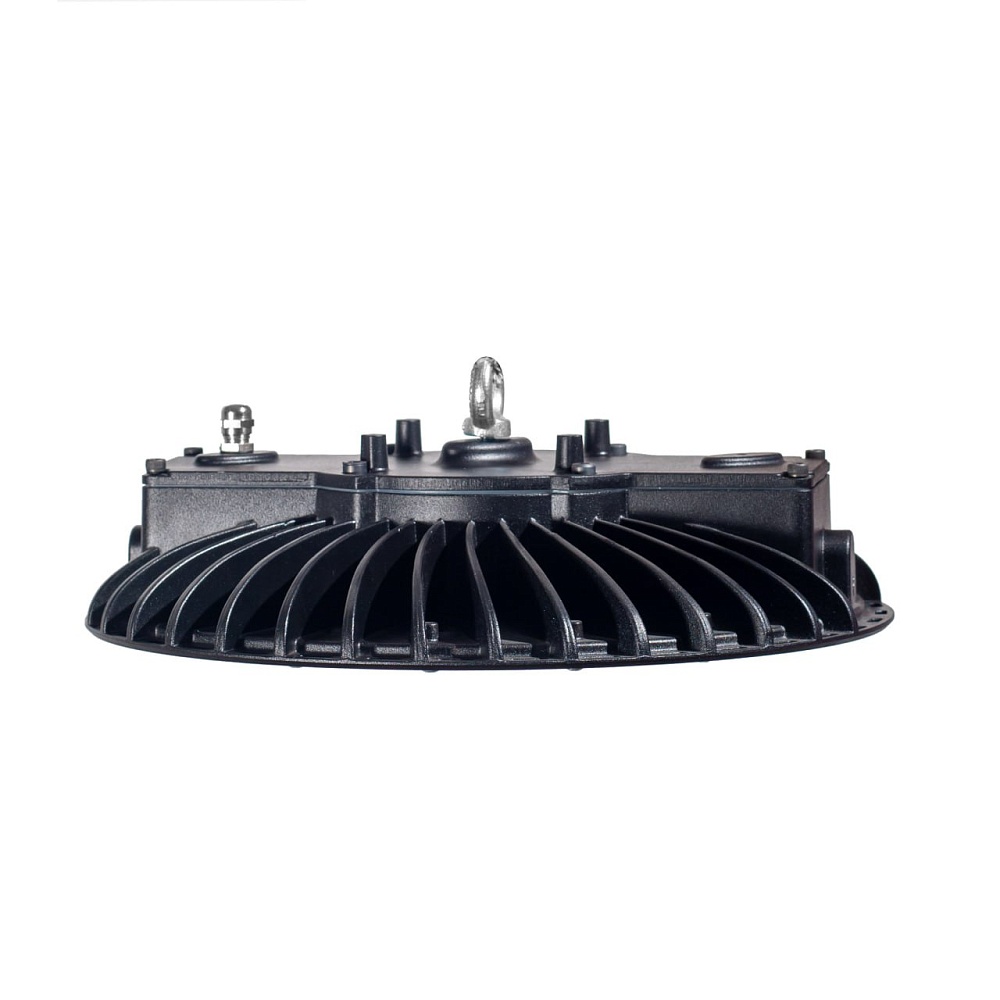

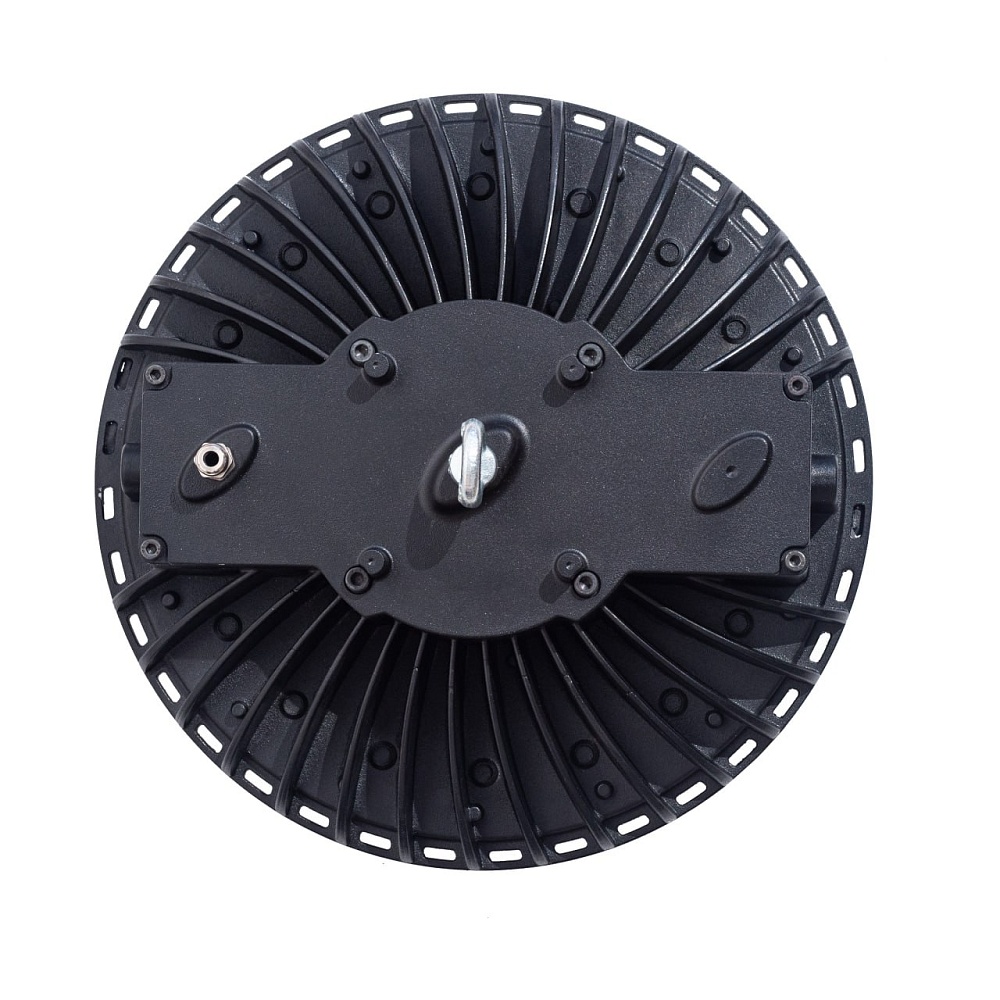

DCF 323 HIGHBAY HE MAXI

PRODUCT INFORMATION

FUNCTIONALITY

• Diffuser:
  • PMMA LEDIL Lens as standard
  • PC LEDIL Lens on request
• Color Rendering Index (CRI):
  > 80
• Power supply:
  Driver Philips Xitanium
• Control method
  • 1-10V (dimming range 10-100%)
  • DALI (dimming range 10-100%)
  • Codes mains
  • ApmDim
  • LineSwitch 3 step or single step
• Light source:
  MST LED module

ELECTRICAL PARAMETERS

• Electrical isolation class IEC:
  • Class I as standard
  • Class II on request
• Power factor nominal:
  0,95
• Input voltage:
  230–240 V
• Power consumption:
  128–160W dependindg on the type
• Luminaires/MCB 16A Type B
  ≤ 8
• Output current ripple
  • LF ≤ 4
  • HF ≤ 4

MECHANICAL PARAMETERS

• Ingress protection:
  IP66
• Gasket material
  Silicone
• Impact resistance:
  • IK07 as standard
  • IK10 on request
• Body material:
  Housing: high-pressure, die-cast aluminum
• Color:
  Black

OVERTIME PERFORMANCE

• Initial system efficacy:
  156-163 Lm/W
• Median useful life of LED source:
  L80B20, 100 000 Hours
• Initial light output
  20000Lm or 25000Lm depending on the type

ENVIROMENTAL CONDITIONS

• Ambient temperature range:
  -40 to +55 °C

ACCSESORIES

• EOC	Description
  30112003	Hanging loop
  30112004	Rope for suspension

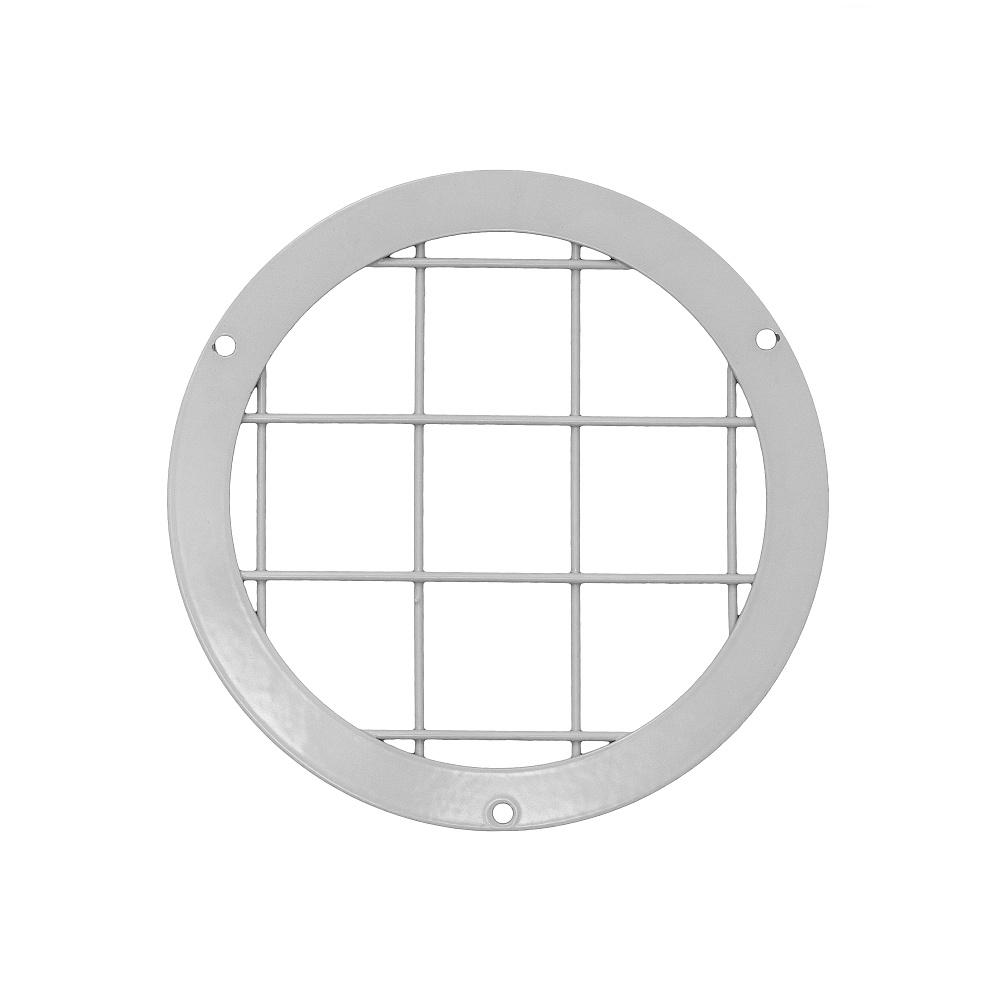

  30112005	Protective grid 324
  30112006	Protective grid 323

GENERAL INFORMATION

• CE mark:
  CE marked
• ROHS
  ROHS compliant
• Application:
  • Industrial halls
  • Warehouses
  • Exhibition halls
  • Food production area
  • Supermarkets
