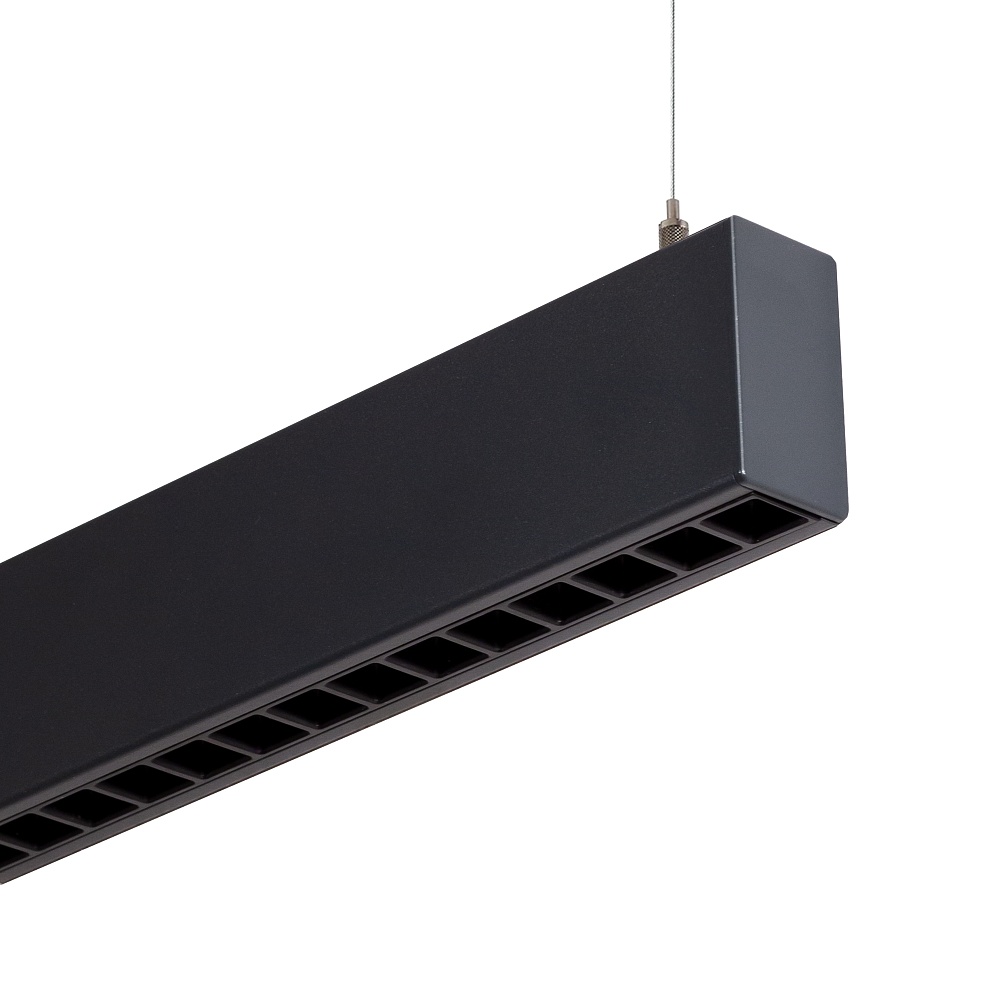

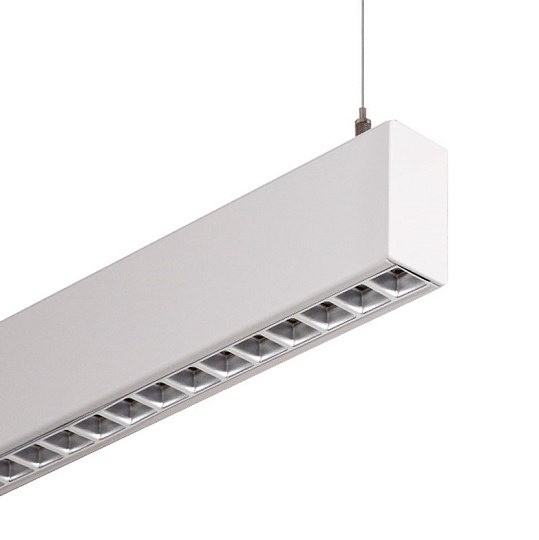

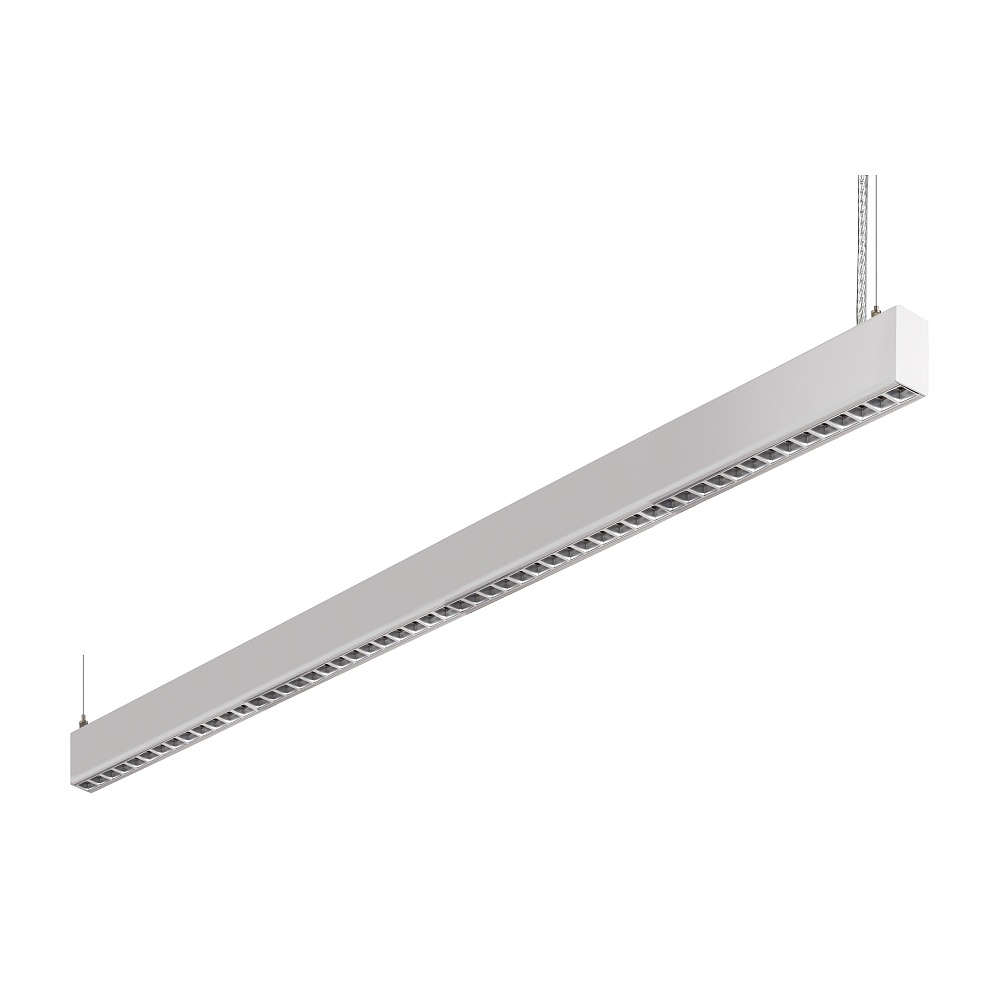

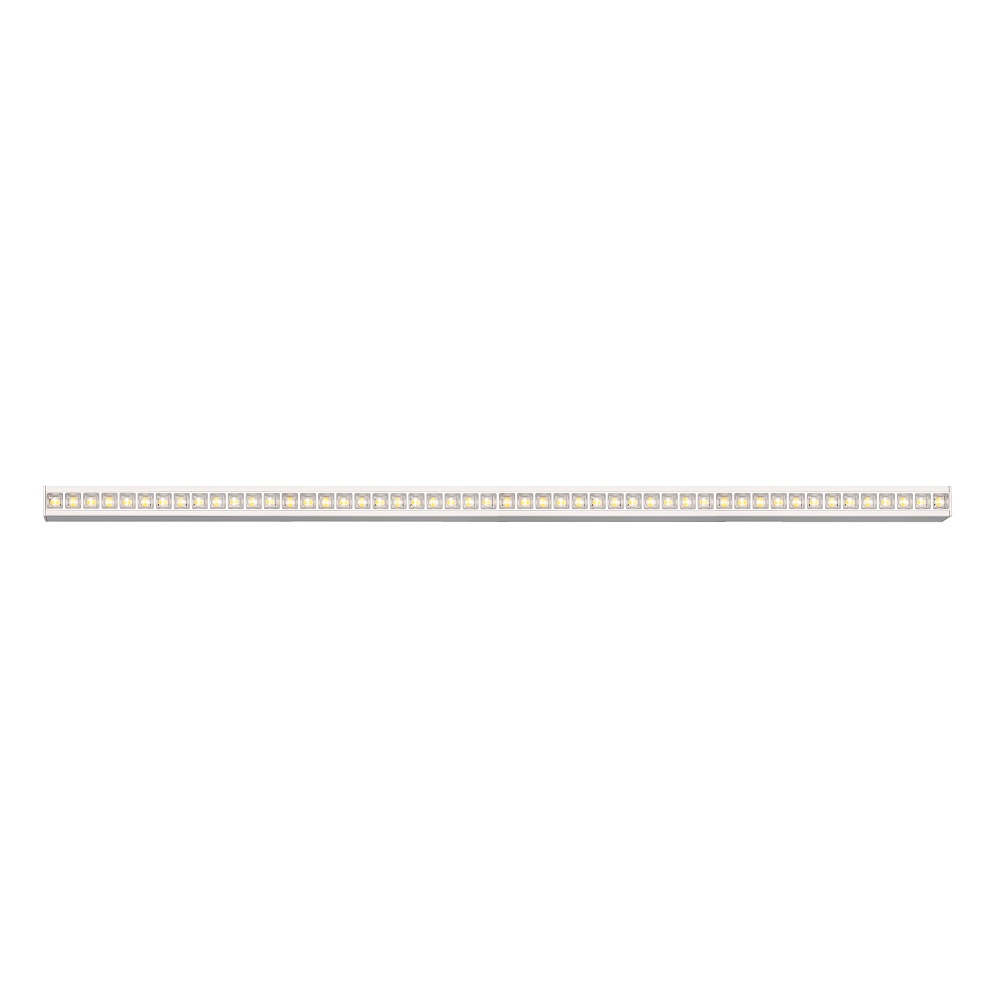

LS 352

Code	Description	Light ouput, L	Power W	Efficacy Lm/W	CCT,K	CRI
700155850010	LS352 LED4600Lm 35W I 830 WB L1130 ALU Wh/DARK	4600	35	131	3000	80
700155850011	LS352 LED3600Lm 35W I 927 WB L1130 ALU Wh/DARK	3600	35	103	2700	90
700155850012	LS352 LED3800Lm 35W I 930 WB L1130 ALU Wh/DARK	3800	35	109	3000	90
700155850020	LS352 LED4900Lm 35W I 840 WB L1130 ALU Wh/DARK	4900	35	140	4000	80
700155850021	LS352 LED4200Lm 35W I 940 WB L1130 ALU Wh/DARK	4200	35	120	4000	90
700155850030	LS352 LED2700LM 35W I 827-865 WB L1130 ALU Wh/DARK	2700	35	77	2700-6500	80
700155850040	LS352 LED4600Lm 35W I 830 WB DALI L1130 ALU Wh/DARK	4600	35	131	3000	80
700155850041	LS352 LED3600Lm 35W I 927 WB DALI L1130 ALU Wh/DARK	3600	35	103	2700	90
700155850042	LS352 LED3800Lm 35W I 930 WB DALI L1130 ALU Wh/DARK	3800	35	109	3000	90
700155850050	LS352 LED4900Lm 35W I 840 WB DALI L1130 ALU Wh/DARK	4900	35	140	4000	80
700155850051	LS352 LED4200Lm 35W I 940 WB DALI L1130 ALU Wh/DARK	4200	35	120	4000	90
700155850110	LS352 LED4800Lm 35W I 830 WB L1130 ALU Wh/Chrom	4800	35	137	3000	80
700155850111	LS352 LED3800Lm 35W I 927 WB L1130 ALU Wh/Chrom	3800	35	109	2700	90
700155850112	LS352 LED4000Lm 35W I 930 WB L1130 ALU Wh/Chrom	4000	35	114	3000	90
700155850120	LS352 LED5000Lm 35W I 840 WB L1130 ALU Wh/Chrom	5000	35	143	4000	80
700155850121	LS352 LED4300Lm 35W I 940 WB L1130 ALU Wh/Chrom	4300	35	123	4000	90
700155850130	LS352 LED2800Lm 35W I 827-865 WB L1130 ALU Wh/Crom	2800	35	80	2700-6500	90
700155850140	LS352 LED4800Lm 35W I 830 WB DALI L1130 ALU Wh/Crom	4800	35	137	3000	80
700155850141	LS352 LED3800Lm 35W I 927 WB DALI L1130 ALU Wh/Crom	3800	35	109	2700	80
700155850142	LS352 LED4000Lm 35W I 930 WB DALI L1130 ALU Wh/Crom	4000	35	114	3000	90
700155850150	LS352 LED5000Lm 35W I 840 WB DALI L1130 ALU Wh/Chrom	5000	35	143	4000	80
700155850151	LS352 LED4300Lm 35W I 940 WB DALI L1130 ALU Wh/Chrom	4300	35	123	4000	90
700155852010	LS352 LED4600Lm 35W I 830 WB L1130 ALU Grey/DARK	4600	35	131	3000	80
700155852011	LS352 LED3600Lm 35W I 927 WB L1130 ALU Grey/DARK	3600	35	103	2700	90
700155852012	LS352 LED3800Lm 35W I 930 WB L1130 ALU Grey/DARK	3800	35	109	3000	90
700155852020	LS352 LED4900Lm 35W I 840 WB L1130 ALU Grey /DARK	4900	35	140	4000	80
700155852021	LS352 LED4200Lm 35W I 940 WB L1130 ALU Grey /DARK	4200	35	120	4000	90
700155852030	LS352 LED2700Lm 35W I 827-865 WB L1130 ALU Grey/DARK	2700	35	77	2700-6500	80
700155852040	LS352 LED4600Lm 35W I 830 WB DALI L1130 ALU Grey/DARK	4600	35	131	3000	80
700155852041	LS352 LED3600Lm 35W I 927 WB DALI L1130 ALU Grey/DARK	3600	35	103	2700	90
700155852042	LS352 LED3800Lm 35W I 930 WB DALI L1130 ALU Grey/DARK	3800	35	109	3000	90
700155852050	LS352 LED4900Lm 35W I 840 WB DALI L1130 ALU Grey/DARK	4900	35	140	4000	80
700155852051	LS352 LED4200Lm 35W I 940 WB DALI L1130 ALU Grey/DARK	4200	35	120	4000	90
700155852110	LS352 LED4800Lm 35W I 830 WB L1130 ALU Grey/Chrom	4800	35	137	3000	80
700155852111	LS352 LED3800Lm 35W I 927 WB L1130 ALU Grey/Chrom	3800	35	109	2700	90
700155852112	LS352 LED4000Lm 35W I 930 WB L1130 ALU Grey/Chrom	4000	35	114	3000	90
700155852120	LS352 LED5000Lm 35W I 840 WB L1130 ALU Grey/Chrom	5000	35	143	4000	80
700155852121	LS352 LED4300Lm 35W I 940 WB L1130 ALU Grey/Chrom	4300	35	123	4000	90
700155852130	LS352 LED2800Lm 35W I 827-865 WB L1130 ALU Grey/Chrom	2800	35	80	2700-6500	80
700155852140	LS352 LED4800Lm 35W I 830 WB DALI L1130 ALU Grey/Chrom	4800	35	137	3000	80
700155852141	LS352 LED3800Lm 35W I 927 WB DALI L1130 ALU Grey/Chrom	3800	35	109	2700	90
700155852142	LS352 LED4000Lm 35W I 930 WB DALI L1130 ALU Grey/Chrom	4000	35	114	3000	90
700155852150	LS352 LED5000Lm 35W I 840 WB DALI L1130 ALU Grey/Chrom	5000	35	143	4000	80
700155852151	LS352 LED4300Lm 35W I 940 WB DALI L1130 ALU Grey/Chrom	4300	35	123	4000	90
700155851010	LS352 LED2300Lm 18W I 830 WB L1130 ALU Grey/DARK	2300	18	128	3000	80
700155851011	LS352 LED1800Lm 18W I 927 WB L1130 ALU Grey/DARK	1800	18	100	2700	90
700155851012	LS352 LED1900Lm 18W I 930 WB L1130 ALU Grey/DARK	1900	18	106	3000	90
700155851020	LS352 LED2400Lm 18W I 840 WB L1130 ALU Grey /DARK	2400	18	133	4000	80
700155851021	LS352 LED2100Lm 18W I 940 WB L1130 ALU Grey /DARK	2100	18	117	4000	90
700155851030	LS352 LED1300Lm 18W I 827-865 WB L1130 ALU Grey/DARK	1300	18	72	2700-6500	80
700155851040	LS352 LED2400Lm 18W I 830 WB L1130 ALU Grey/Chrom	2400	18	133	3000	80
700155851041	LS352 LED1900Lm 18W I 927 WB L1130 ALU Grey/Chrom	1900	18	106	2700	90
700155851042	LS352 LED2000Lm 18W I 930 WB L1130 ALU Grey/Chrom	2000	18	111	3000	90
700155851050	LS352 LED2500Lm 18W I 840 WB L1130 ALU Grey/Chrom	2500	18	139	4000	80
700155851051	LS352 LED2200Lm 18W I 940 WB L1130 ALU Grey/Chrom	2200	18	122	4000	90
700155851110	LS352 LED1400Lm 18W I 827-865 WB L1130 ALU Grey/Crom	1400	18	78	2700-6500	80
700155851111	LS352 LED2300Lm 18W I 830 WB L1130 ALU White/DARK	2300	18	128	3000	80
700155851112	LS352 LED1800Lm 18W I 927 WB L1130 ALU White/DARK	1800	18	100	2700	90
700155851120	LS352 LED1900Lm 18W I 930 WB L1130 ALU White/DARK	1900	18	106	3000	90
700155851121	LS352 LED2400Lm 18W I 840 WB L1130 ALU White/DARK	2400	18	133	4000	80
700155851130	LS352 LED2100Lm 18W I 940 WB L1130 ALU White/DARK	2100	18	117	4000	90
700155851140	LS352 LED1300Lm 18W I 827-865 WB L1130 ALU White/DARK	1300	18	72	2700-6500	80
700155851141	LS352 LED2400Lm 18W I 830 WB L1130 ALU White/Chrom	2400	18	133	3000	80
700155851142	LS352 LED1900Lm 18W I 927 WB L1130 ALU White/Chrom	1900	18	106	2700	90
700155851150	LS352 LED2000Lm 18W I 930 WB L1130 ALU White/Chrom	2000	18	111	3000	90
700155851151	LS352 LED2500Lm 18W I 840 WB L1130 ALU White/Chrom	2500	18	139	4000	80
700155851152	LS352 LED2200Lm 18W I 940 WB L1130 ALU White/Chrom	2200	18	122	4000	90
700155851153	LS352 LED1400Lm 18W I 827-865 WB L1130 ALU White/Crom	1400	18	78	2700-6500	80
