DWL-LC

PRODUCT INFORMATION

FUNCTIONALITY

• Initial LED luminaire efficacy:
  120-160 lm/W depends on the type
• Initial light output:
  4700-10900Lm
• Color Rendering Index (CRI):
  > 80
• Power supply:
  Driver Philips or Tridonic included
• Light source:
  LED module with Osram LED chips
• Color temperature:
  4000K as a standard, 3000,5000,6500K on request
• Managing options:
  DALI, 1-10V, Motion sensor, wireless connections.
• Emergency battery operated hours:
  Philips TrustSight system 3 hours light (Basic or self test)
• Color tolerance (initial McAdam):
  3

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0.92
• Electrical isolation class IEC:
  Class I or Class II on request
• Number of luminaires on MCB B16 (max):
  24 pcs
• Power factor nominal:
  0,93
• Input voltage:
  220 – 240 V
• Power consumption:
  33-68 W depending on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP50
• Impact resistance:
  05

OVERTIME PERFORMANCE

• Median useful life of LED source:
  L80B20 - 50 000 hours

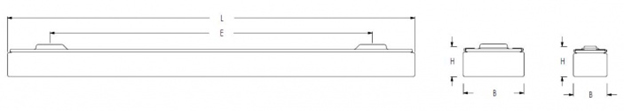

DIMENSIONS AND WEIGHT

•


• Dimensions:

  Description	L, mm	H, mm	B, mm	E, mm
  DWL-LC_120	1260	105	95	740
  DWL-LC_150	1560	105	95	850

• Warranty period:
  5 years
• Pcs on the pallet:
  80
