STREET LIGHTING

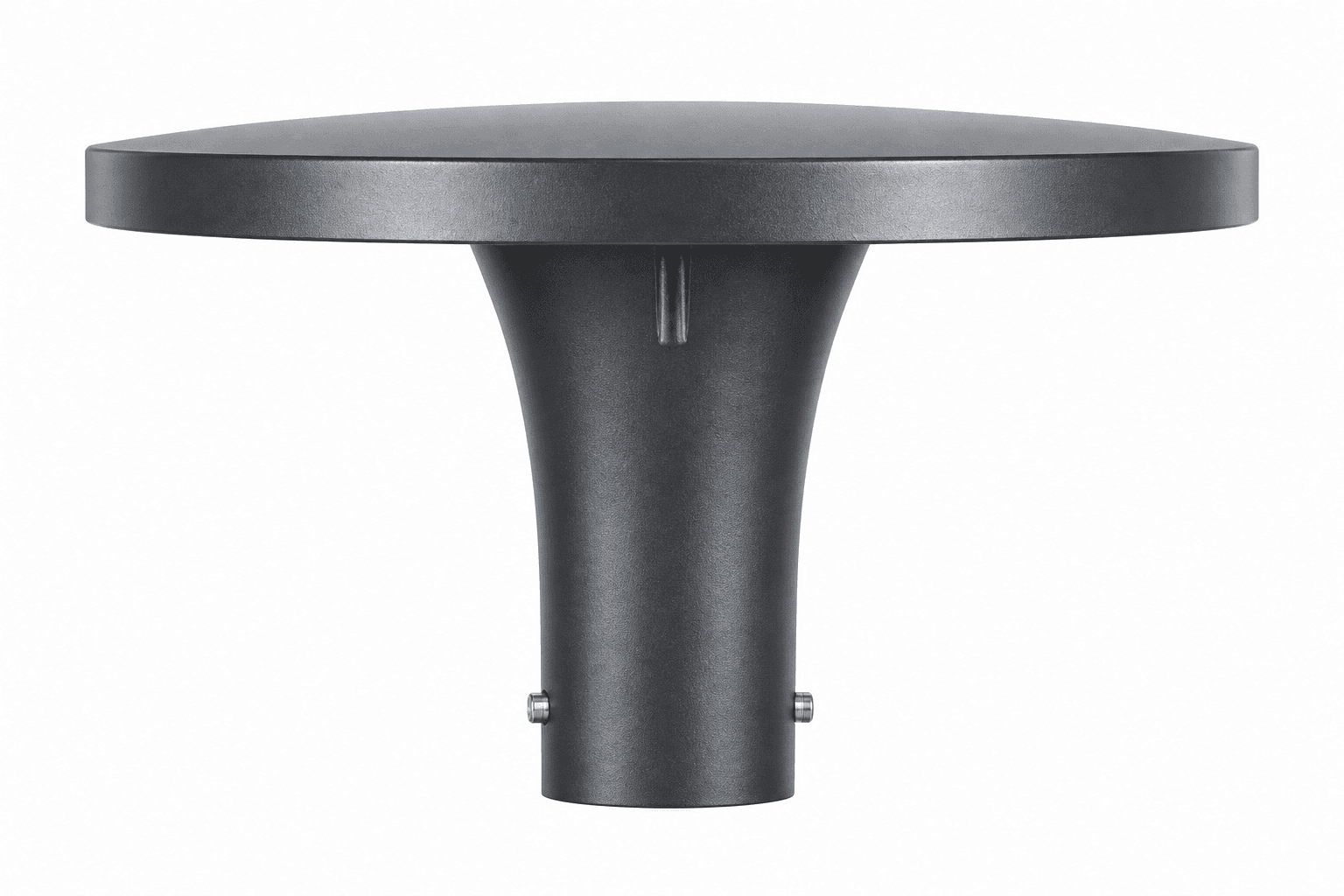

Viking DKS 752

BENEFITS:

  • Ensure high energy efficiency in combination with moderate initial investments in infrastructure development
  • Modest modern design of Viking luminaire fits well in diversified and demanding city environment. Selection of different size housings in combination with a range of high-performance optics and light colour temperatures satisfies all demands for city street lighting.
  • The highest quality LED components of proven manufacturers and reliable technical design ensures high-quality lighting and long lifetime.

DOWNLOADS:

PRODUCT FAMILY INFORMATION

TYPE

Product type:

VIKING DKS 752

ELECTRICAL PARAMETERS

Driver efficiency nominal:

> 0,95

Driver failure ratio:

-

Driver type:

Driver included

Electrical isolation class IEC:

Class I, or II

Input Frequency:

50 – 60 Hz

LED current ripple %:

230 – 240 V / 50 – 60 Hz

Mains voltage index:

230 – 240 V / 50 – 60 Hz

Nominal input voltage range:

-

Power factor nominal:

-

Power range:

18-81W depending on type

Surge protection:

6 kV standard 10kV optional

LIGHTING PERFORMANCE

CCT:

3000 – 5700К

Color rendering index, CRI:

75 – 80

Initial color shift, SDCM:

-

Light distribution:

Wide beam, Narrow beam, Assymetric

Light source:

LED module

LOR:

> 0,95

Luminaire lumen output range, lm:

2000-10200 lm depending on type

Photobiological safety:

-

Type of optic:

-

CONSTRUCTION AND MATERIALS

Dimensions LxWxH:

-

Effective protected area:

-

Housing colour:

RAL 7035

Housing material:

High-pressure, die-cast aluminium Side-entry mounting: lateral entry O40/60mm

Impact resistance:

IK08 as standard, IK09 optional

Ingress protection:

IP66

Installation options:

Recommended mounting height: 4-8 m

Optical cover:

Glass, flat as standard, PC optional

Windage area:

-

OPERATION AND MAINTENANCE

Electrical connection:

-

Maintenance:

Opening without tools, safety switch disconnects power on opening – Safe Maintenance Technology (SMT)

Maintenance of lumen output:

100 000 hours

Operating temperature range:

-

Application:

• Urban road and streets
• Residential roads and paths
• Pedestrian crossroads

MARKING AND APPROVALS

CE mark:

Ce marked

ROHS mark:

ROHS compilant
