RWC

PRODUCT INFORMATION

TYPE

• Product type:
  RWC

FUNCTIONALITY

• Initial LED luminaire efficacy:
  120 lm/W
• Color Rendering Index (CRI):
  > 80
• Power supply:
  Driver Philips or TCI included
• Light source:
  LED module
• Color temperature:
  4000K as a standard, 3000, 5000, 6500K on request
• Managing options:
  DALI, Motion sensor, wireless connections.
• Emergency battery operated hours:
  Yes
• Color tolerance (initial McAdam)
  3

ELECTRICAL PARAMETERS

• Driver efficiency nominal:
  0.92
• Electrical isolation class IEC:
  Class I as a standard, Class II on request
• Power factor nominal:
  0,93
• Input voltage:
  220 – 240 V
• Power consumption:
  10-39 W depending on type

MECHANICAL PARAMETERS

• Ingress protection:
  IP40
• Impact resistance:
  IK05 for PMMA diffuser

OVERTIME PERFORMANCE

• Median useful life of LED source:
  L80B10 - 50 000 hours

GENERAL INFORMATION

• Dimensions:

  Description	D/D1/D2,mm	H1/H2,mm
  RWC 290	290	70
  RWC 360	360	70
  RWC 400	464	70

• Warranty period:
  5 years
• Pcs on the pallet:
  90
• Application:
  • Parking garages
  • Basements
  • Cellars
  • Warehouses
  • General lighting

ACCESSORIES

• Decorative screens (download information)

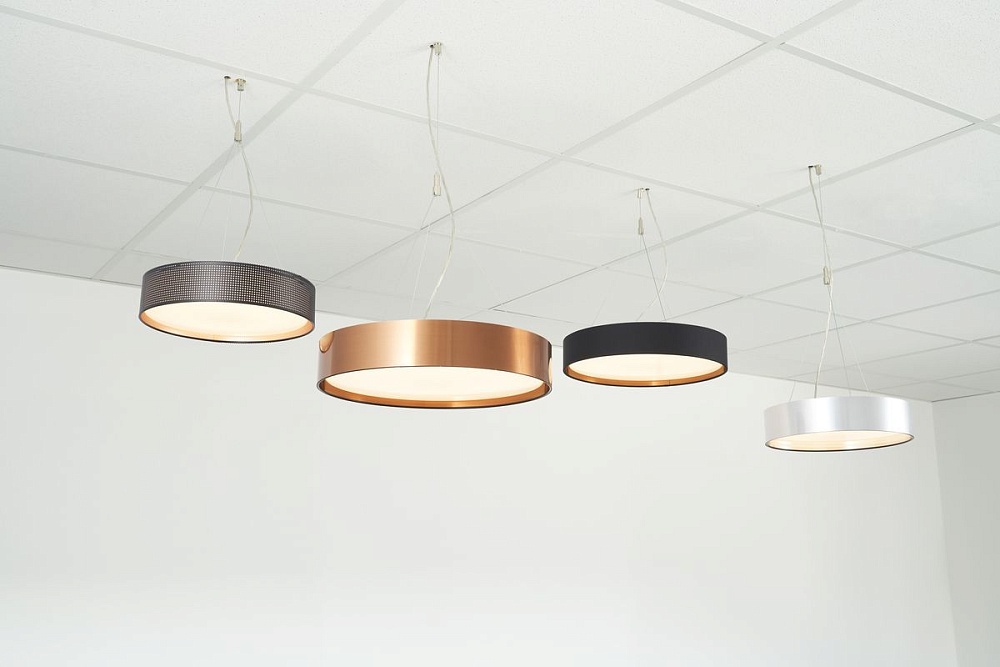

• Set for suspension


DIFFUSER OPTIONS

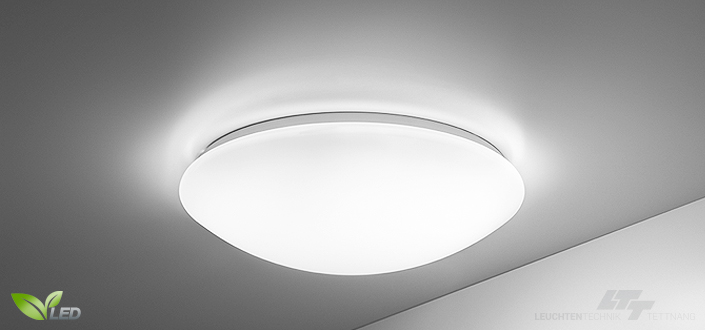

• Cambered PMMA

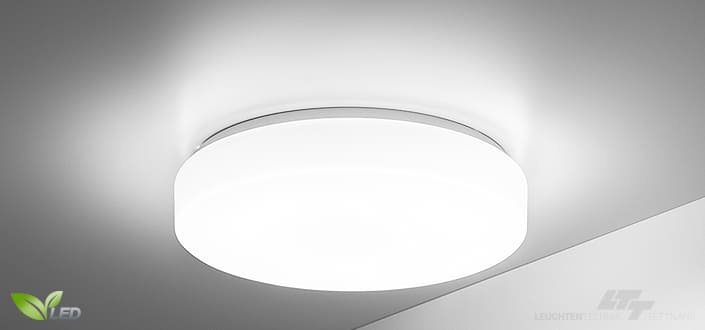

• Cylindric PMMA
