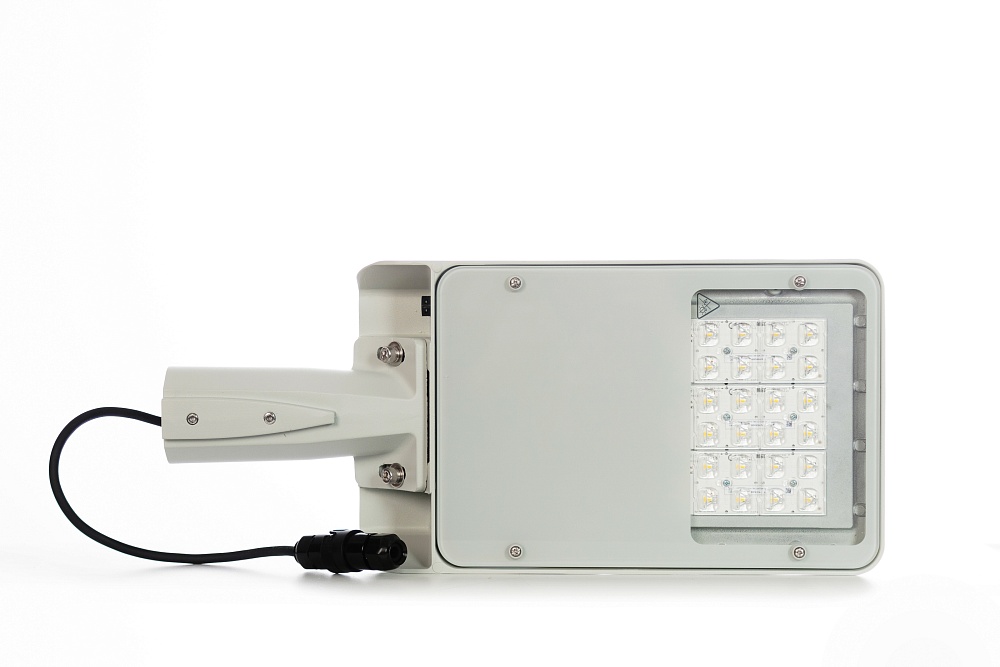

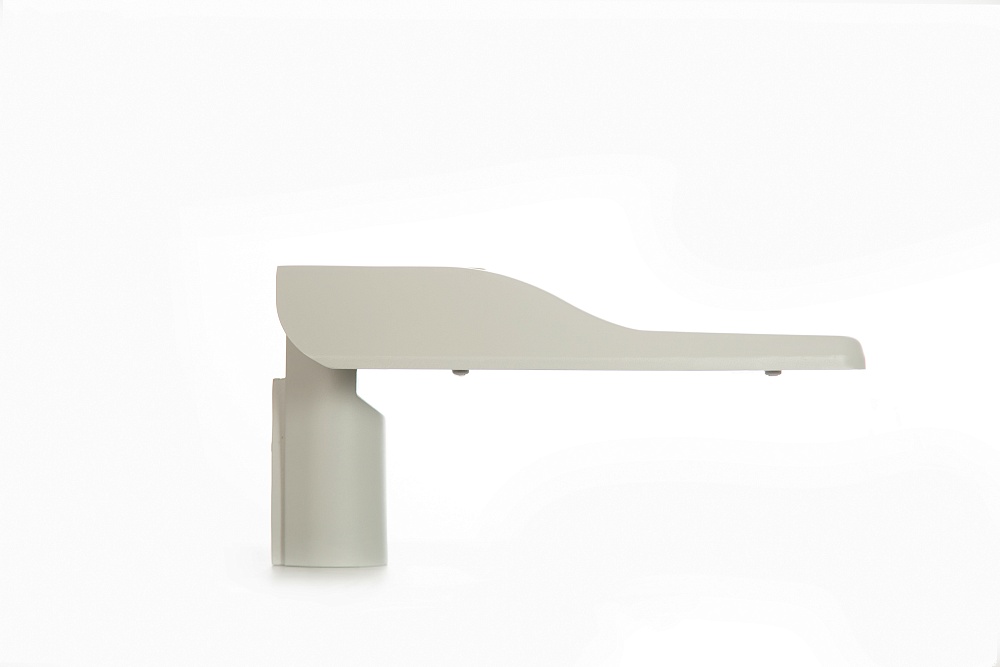

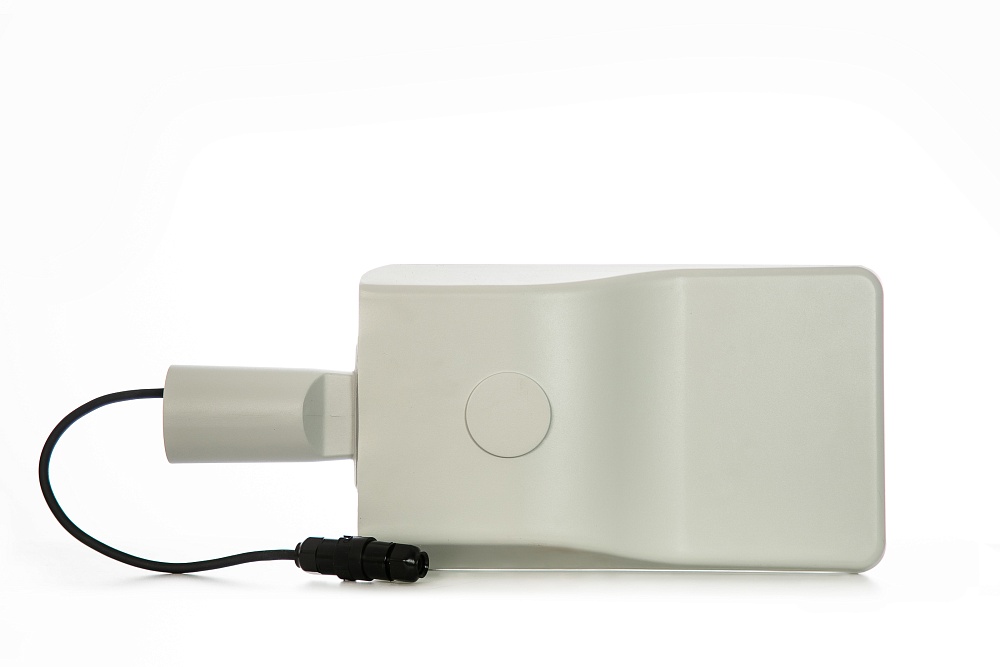

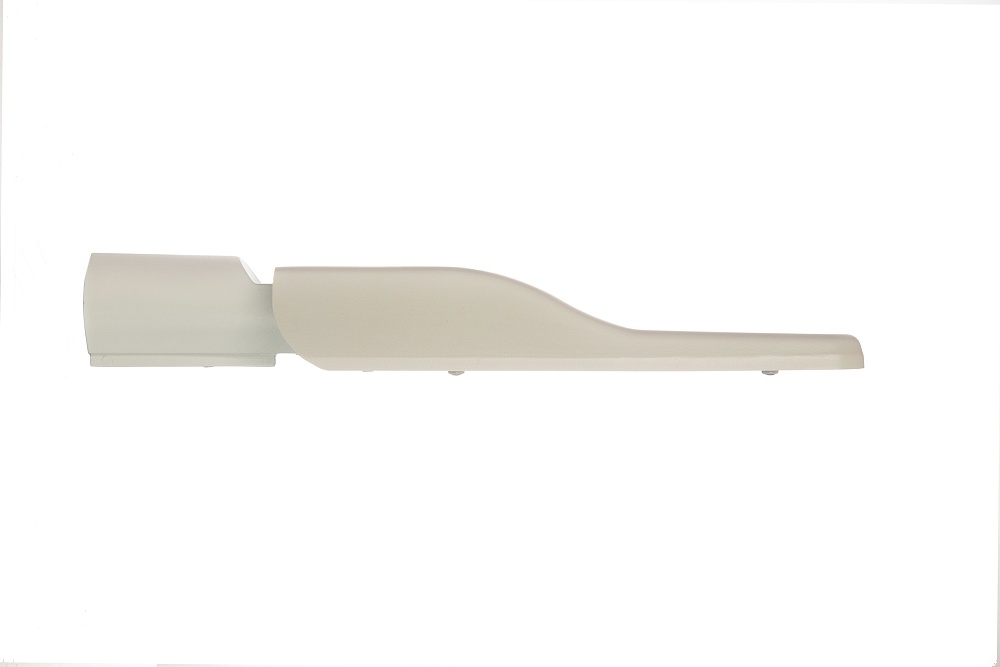

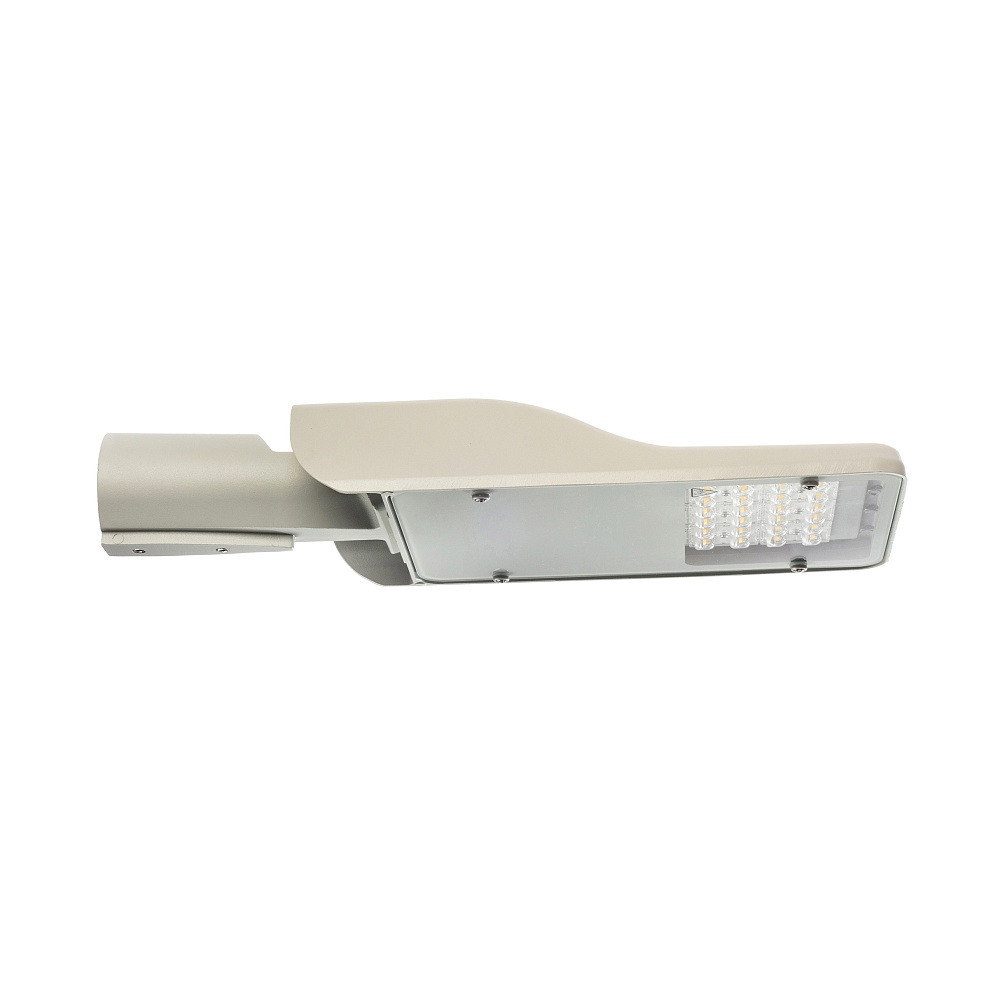

MALMÖ MINI

Benefits:

Long life ceramic package LED chips by OSRAM – CCT 3000/4000/5700K @ CRI >70 , service lifetime >100000hrs ;
Modest modern design of MALMÖ luminaire fits well in diversified and demanding city environment. Selection of different size housings in combination with a range of high-performance optics and light color temperatures satisfies all demands for city street lighting.
The highest quality LED components of proven manufacturers and reliable technical design ensures high-quality lighting and long lifetime.
Selection of light distributions for roads and area lighting
Low ageing PMMA lenses by LEDIL

Downloads:

PRODUCT INFORMATION

TYPE

Product type:

MALMÖ MINI DKS 674

ELECTRICAL PARAMETERS

Driver efficiency nominal:

up to 0.92

Driver failure ratio:

< 10% at 50000 or 100000 hours depends on type

Driver type:

Built in PHILIPS Xitanium Outdoor driver

Electrical isolation class IEC:

Safety class I as a standard, II on request

Input Frequency:

50-60 Hz

LED current ripple %:

230 – 240 V / 50 – 60 Hz

Mains voltage index:

230 – 240 V / 50 – 60 Hz

Nominal input voltage range:

202..254 or 198…264, depends on type

Power factor nominal:

up to 0.98

Power range:

18-54W depending on type

Surge protection:

4/6 kV

LIGHTING PERFORMANCE

CCT:

3000K, 4000K, 5700K

Color rendering index, CRI:

> 70

Initial color shift, SDCM:

< 5

Light distribution:

Asymmetric for roads, areas, walkways, pedestrian crossings and other types on request

Light source:

Modules with OSRAM long life ceramic package LED chips with silicone lens diodes

LOR:

up to 0,94

Luminaire lumen output range, lm:

2300….7800 Lm depending on type

Photobiological safety:

RG1

Type of optic:

Low ageing PMMA lenses by LEDIL

CONSTRUCTION AND MATERIALS

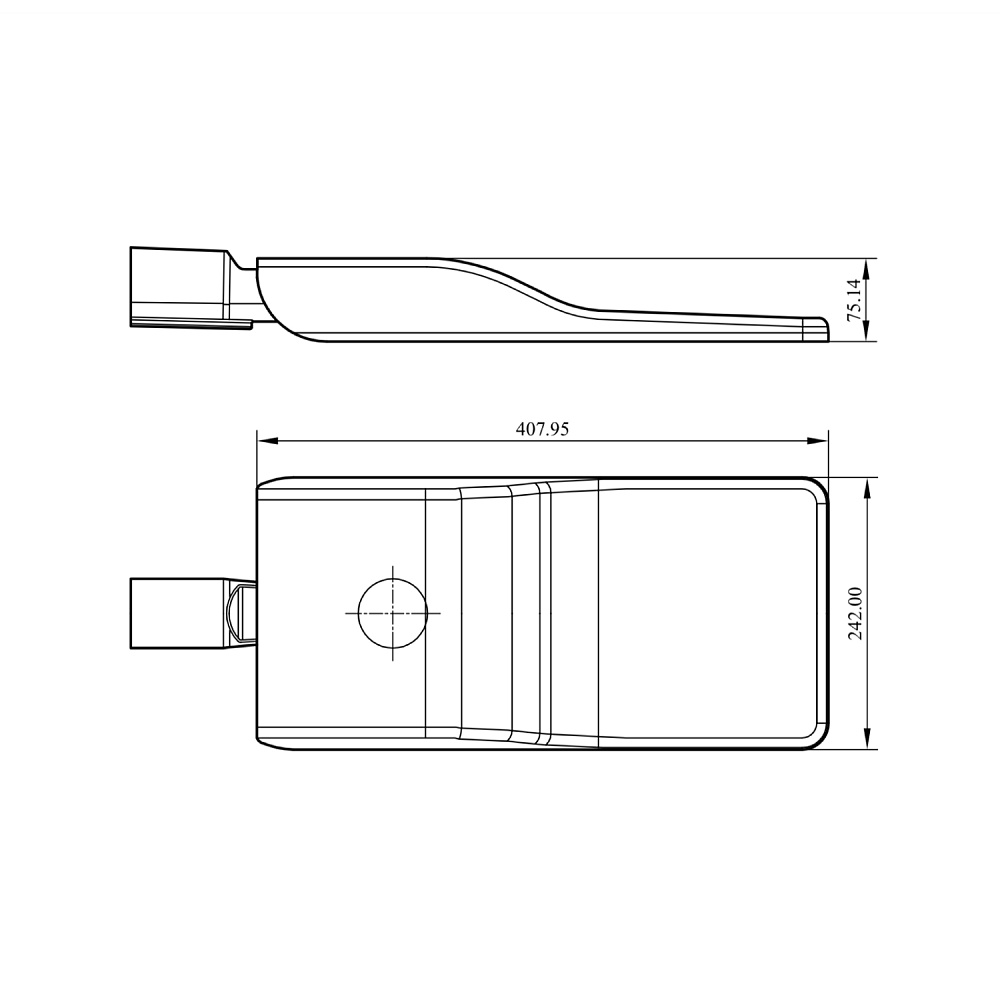

Dimensions LxWxH:

530(410)x240x76

Effective protected area:

-0.02

Housing colour:

RAL 7035

Housing material:

Housing: high-pressure, die-cast aluminium powder coated, no plastic parts

Ingress protection:

IP66

Installation options:

Post top or side entry installation 40-60mm with tilt regulation 0/5/10/15 dgr

Optical cover:

Extra clear toughened flat glass

Windage area:

no more 0,099sq.m above/below and 0,031sq.m side position

OPERATION AND MAINTENANCE

Electrical connection:

0.4m cable as standard or 5….15m cable as other options on request

Maintenance:

Opening with screw, LED modules are non-replaceable and can be replaced by manufacturer only

Maintenance of lumen output:

100000 hours – L90B10

Operating temperature range:

-40…+35 C, typical for exact values

Application:

Urban road and streets
Residential roads and paths
Pedestrian crossroad

MARKING AND APPROVALS

CE mark:

CE marked

ROHS mark:

ROHS complaint

EOC	Description	Power consumption,W	Flux,LM	Efficacy LM/W	Weght,kg
600151401014	DKS674 LED024 18W 740 I WB IC0	18	2400	133	4,5
600151401015	DKS674 LED026 18W 740 I WB1 IC0	18	2600	144	4,5
600151401046	DKS674 LED026 18W 740 I NB2 IC0	18	2600	144	4,5
600151401016	DKS674 LED023 18W 730 I WB IC0	18	2300	128	4,5
600151401020	DKS674 LED025 18W 730 I WB1 IC0	18	2500	139	4,5
600151401021	DKS674 LED037 28W 740 I WB IC0	28	3700	132	4,5
600151401022	DKS674 LED039 28W 740 I WB1 IC0	28	3900	139	4,5
600151401047	DKS674 LED039 28W 740 I NB2 IC0	28	3900	139	4,5
600151401023	DKS674 LED039 28W 740 I NB1 IC0	28	3900	139	4,5
600151401024	DKS674 LED035 28W 730 I WB IC0	28	3500	125	4,5
600151401025	DKS674 LED037 28W 730 I WB1 IC0	28	3700	132	4,5
600151401026	DKS674 LED037 28W 730 I NB1 IC0	28	3700	132	4,5
600151401027	DKS674 LED051 36W 730 I NB1 IC0	36	5100	142	4,5
600151401002	DKS674 LED051 36W 740 I WB IC0	36	5100	142	4,5
600151401028	DKS674 LED053 36W 740 I WB1 IC0	36	5300	147	4,5
600151401029	DKS674 LED053 36W 740 I NB1 IC0	36	5300	147	4,5
600151401048	DKS674 LED053 36W 740 I NB2 IC0	36	5300	147	4,5
600151401030	DKS674 LED051 36W 730 I NB2 IC0	36	5100	142	4,5
600151401012	DKS674 LED051 36W 730 I WB1 IC0	36	5100	142	4,5
600151401039	DKS674 LED049 36W 730 I WB IC0	36	4900	136	4,5
600151401031	DKS674 LED076 54W 740 I WB IC0	54	7600	141	4,5
600151401032	DKS674 LED078 54W 740 I NB1 IC0	54	7800	144	4,5
600151401049	DKS674 LED078 54W 740 I NB2 IC0	54	7800	144	4,5
600151401034	DKS674 LED074 54W 730 I WB IC0	54	7400	137	4,5
600151401035	DKS674 LED076 54W 730 I NB1 IC0	54	7600	141	4,5
600151401036	DKS674 LED076 54W 730 I NB2 IC0	54	7600	141	4,5
600151401050	DKS674 LED078 54W 740 I WB1 IC0	54	7600	141	4,5
600151401051	DKS674 LED078 54W 757 I ASR IC0	54	7800	144	4,5
600151401052	DKS674 LED076 54W 730 I WB1 IC0	54	7600	141	4,5
